Product Dimensions 4.7034"h x 29.718"w x 19.812"d

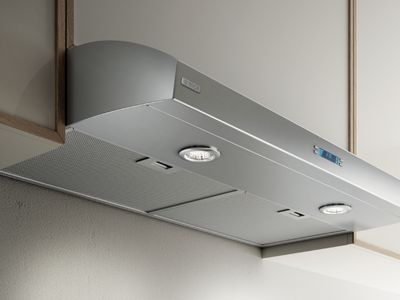

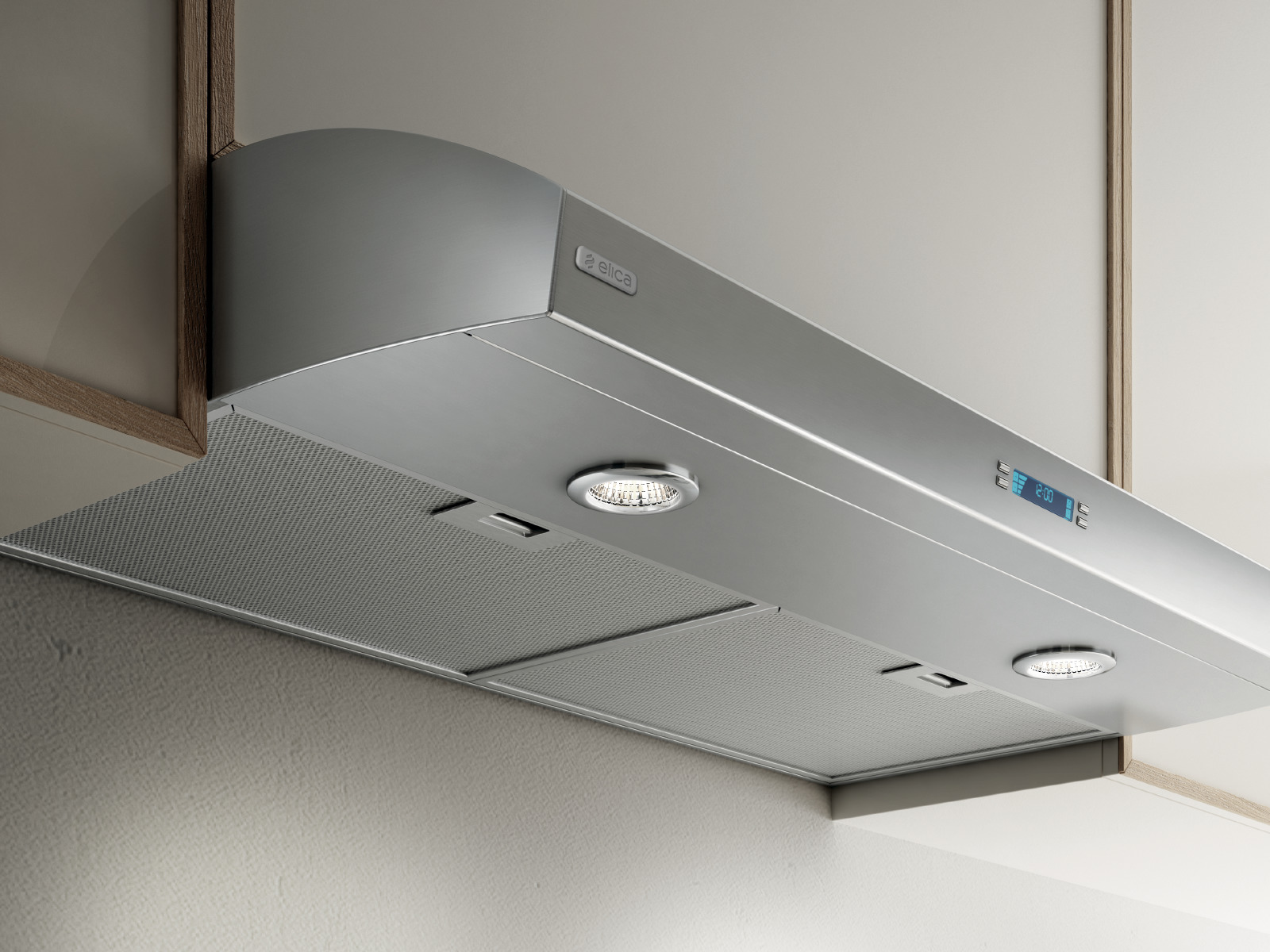

With a compact 4 ¾" height, Bellagio is an ideal choice where under-cabinet space is limited. An upgraded 4-speed, 430 CFM internal blower provides sufficient ventilation power for most kitchens. Bellagio also offers the luxury and convenience of halogen lighting with 2 light intensities, dishwasher-safe anodized aluminum mesh filters and multi-function electronic controls with LCD display. Available in 30” or 36” width, Bellagio is designed for standard ducted installation, and can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.Read More
General Specs | |
| Width (in.) | 29.718 |
| Height (in.) | 4.7034 |
| Depth (in.) | 19.812 |
| Collection | Techne Series Bellagio |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 76 |
| Manufacturer Warranty | 2 Year |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Under Cabinet |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Maximum CFM | 430 |
| Grease Filter Type | Aluminum Mesh |
| Width (cm) | 76.2 |
| Height (cm.) | 12.06 |
| Depth (cm.) | 50.8 |
| Voltage | 120 |
| Amp | 3.6 |
| Frequency | 60 |
Overview | |
| Noise (sones) | Min: 1.4, Max: 7.1 |
| Duct Transition | 3 1/4” x 10” with Back Draft Damper (top or rear), or 7” Round (top) sold separately |
| Installation Type | Ducted or Recirculating Installation (Recirculating Kit Sold Separately) |
| Product Material | Stainless Steel |
| Ship Dimensions | 34.01'' x 24.33'' x 9.80'' |
