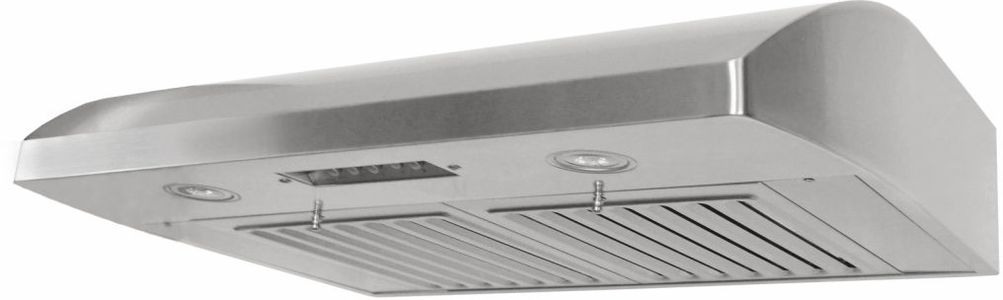

KOBE® Brillia® Series 30" Stainless Steel Under Cabinet Range Hood


Model #:

CHX2230SQB-1

Model #: CHX2230SQB-1
818631
KOBE
$1,329.00

At a Glance

Product Dimensions 5.88"h x 29.75"w x 22"d

KOBE Brillia under cabinet range hood is equipped with 3-speed mechanical push button, dishwasher-safe baffle filters, and LED lights. It is a powerful hood with 680 CFM internal blower yet quiet at 1.0 sone on QuietMode.Read More

$1,329.00

Appliance Fit Width (in.):30

What We Offer

Protect Your Purchase
None Selected
Services
None Selected

Get to know this product.

Product Overview

Product Overview

This range hood is handcrafted with 18-gauge commercial grade stainless steel and features a beautiful seamless design. Must purchase TVC20 for rectangular venting.

QuietMode™: At 300 CFM, this unique feature allows the KOBE range hood to operate at a reduced sound level of 40 decibels (1.0 sone).

Blower Type: Twin Vertical Turbine Impeller

Speed / Control: 3-Speed / Mechanical Push Button Control

CFM / Sone: 300 / 1.0 / QuietMode™, 510 / 3.0 / Low, 680 / 5.0 / High

Exhaust: Top 6″ Round, Top 3-1/4″ x 10″ Rectangular (Optional with TVC20), Rear 3-1/4″ x 10″ Rectangular (Optional with TVC20)

Light: The hood is equipped with 3W LED lights (3W)

Filters: Dishwasher safe professional baffle filters allow for easy cleaning.

Attractive Appearance: The seamless curves and stylish appearance of the hood will compliment any kitchen.

Easy to Clean: KOBE’s unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood.

Quality: Parts are checked for defects and designed for trouble free long term use.

Easy to Install: Our special design makes installation fast and easy.

colour: Commercial Grade Stainless Steel

Versatile Installation: This versatile hood can be used for under cabinet or for wall mount style with the optional duct cover.

Useful Documents
Specifications

General Specs

Width (in.)29.75
Height (in.)5.88
Duct Size (in.)6" Round (15.24cm)
Depth (in.)22
CollectionBrillia
ColorStainless Steel
Appliance Fit Width (cm.)76
Manufacturer Warranty1 Year Labor / 2 Year Parts
Color Finish NameStainless Steel
Range Hood TypeUnder Cabinet
ADA CompliantNo
ENERGY STAR CertifiedNo
Outdoor ApprovedNo
Appliance Fit Width (in.)30
Smart CompatibleNo
Maximum CFM680
Grease Filter TypeBaffle
Bulb TypeLED
Sones Rating1.0 - 5.0
Fan Speed Options3
Vent LocationTop
Height Above Cooktop26 - 30
Ventilation DirectionVertical
Width (cm)75.57
Height (cm.)14.92
Depth (cm.)55.88
Height Above Cooktop Centimeter66.04 - 76.20
Amp2.21
Noise Level (Sones)Standard - (High)
Ventilation TypeDucted

Additional Information

ControlMechanical Push Button
QuietMode™1.0 Sone
DuctingVertical and Horizontal
ECO ModeNo
Optional AccessoriesTop Vent Cover, Backsplash Panel
