Product Dimensions 42.88"h x 29.75"w x 20.5"d

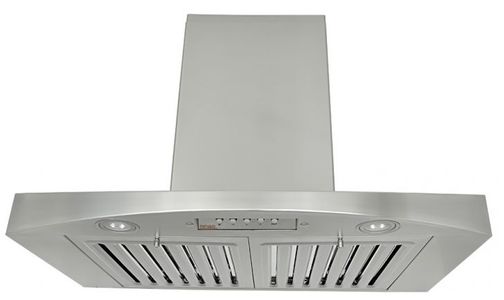

KOBE Premium wall mount range hood is equipped with 3-speed mechanical push button, 680 CFM internal blower, dishwasher-safe baffle filters, and LED lights. This hood is handcrafted with durable 18-gauge commercial grade stainless steel with seamless design.Read More
QuietMode™: At 280 CFM for 30″ or 300 CFM for 36″, this unique feature allows the KOBE range hood to operate at a reduced sound level of 40 decibels (1.0 sone).
Blower Type: Single Horizontal Squirrel Cage
Speed / Control: 3-Speed / Mechanical Push Control
CFM / Sone: For RA3830SQB-WM-1 (30″), 280 / 1.0 / QuietMode™, 450 / 2.2 / Low, 680 / 5.0 / High
Exhaust: Top: 6″ Round
Light: The hood is equipped with 3W LED lights
Filters: Dishwasher safe professional baffle filters allow for easy cleaning.
Attractive Appearance: The seamless curves and stylish appearance of the hood will compliment any kitchen
Easy to Clean: KOBE’s unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood.
Quality: Parts are checked for defects and designed for trouble free long term use.
Easy to Install: Our special design makes installation fast and easy.
colour: Commercial Grade Stainless Steel
Versatile Installation: This versatile hood can be used for under cabinet or for wall mount style with the optional duct cover.
Duct Cover: RA028DC-1 (included)
Ceiling Heights: This wall mount hood fits ceiling height between 7 feet to 9 feet.
General Specs | |
Width (in.) | 29.75 |
Height (in.) | 42.88 |
Duct Size (in.) | 6" Round (15.24cm) |
Depth (in.) | 20.5 |
Collection | Premium |
Color | Stainless Steel |
Appliance Fit Width (cm.) | 76 |
Manufacturer Warranty | 2 Year Parts & Labor |
Color Finish Name | Stainless Steel |
Range Hood Type | Wall Mounted |
ADA Compliant | No |
ENERGY STAR Certified | No |
Outdoor Approved | No |
Appliance Fit Width (in.) | 30 |
Smart Compatible | No |
Maximum CFM | 680 |
Bulb Type | LED |
Grease Filter Type | Baffle |
Sones Rating | 1.0 - 5.0 |
Fan Speed Options | 3 |
Vent Location | Top |
Height Above Cooktop | 26 - 30 |
Ventilation Direction | Vertical |
Width (cm) | 75.57 |
Height (cm.) | 108.90 |
Depth (cm.) | 52.07 |
Height Above Cooktop Centimeter | 66.04 - 76.20 |
Amp | 1.5 |
Noise Level (Sones) | Standard - (High) |
Ventilation Type | Ducted |
Additional Information | |
Control | Mechanical Push Button |
QuietMode™ | 1.0 Sone |
ECO Mode | No |
Ceiling (Min) | 7 feet |
Ceiling (Max) | 9 feet |
Fits Ceiling Heights | 7', 7.5', 8', 8.5', 9' |
Optional Accessories | Backsplash Panel |
